Showing all 11 results
Adapter Breakout Board for ESP-32f ESP32 ESP-Wroom-32 Wireless Bluetooth Module
This is Adapter Breakout Board for ESP-32f ESP32 ESP-Wroom-32 Wireless Bluetooth Module. Adapter Board Pinboard Converter for ESP-32S ESP32S ESP32 Wireless WIFI Module 2.54mm. This is an adapter board for ESP-32S Wireless Module. It can be inserted to breadboard with Dupoint cable wire. Convenient to develop and debug.
Arducam Camera Breakout Board 0.3MP(OV7675) w/ M12 lens (6mm lens)
This is a Camera Breakout Board by Arducam based on the OV7675 0.3MP camera. The module comes with a pre-attached M12 6mm lens. The camera module works on 8-bit parallel mode. Which makes it easy to interface with a USB shield using the 8-bit parallel interface. The camera has a rolling type of shutter.
Arducam Camera Breakout Board 0.3MP(OV7725) w/ M12 lens (6mm lens)
The OV7725 camera module is based on the OmniVision OV7725 image sensor which is a low voltage CMOS device that provides the full functionality of a single-chip VGA camera and image processor, as well as the extraordinary high frame rate and low light performance. The OV7725 provides full-frame, sub-sampled, or windowed 8-bit/10-bit images in a wide range of formats, controlled through the Serial Camera Control Bus (SCCB) interface.
This device has an image array capable of operating at up to 60 frames per second (fps) in VGA with complete user control over image quality, formatting, and output data transfer. All required image processing functions, including exposure control, gamma, white balance, color saturation, hue control, and more, are also programmable through the SCCB interface. In addition, OmniVision sensors use proprietary sensor technology to improve image quality by reducing or eliminating common lighting/electrical sources of image contamination, such as fixed pattern noise, smearing, blooming, etc., to produce a clean, fully stable color image.
CJMCU-4051 74HC4051 8 Channel Analog Multiplexer/Demultiplexer Breakout Board for Arduino
This is CJMCU-4051 74HC4051 8 Channel Analog Multiplexer/Demultiplexer Sensor Module Breakout Board for Arduino. 74HCT4051 is a single-pole octal-throw analog switch (SP8T) suitable for use in analog or digital 8:1 multiplexer/demultiplexer applications. The switch features three digital select inputs (S0, S1, and S2), eight independent inputs/outputs (Yn), a common input/output (Z) and a digital enable input (E). When E is HIGH, the switches are turned off. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.
ICSH044A ICSTATION Blackberry Trackball Breakout Board 360 Degree Trajectory Ball Module
The four spindles on the ICSH044A ICSTATION Blackberry Trackball Breakout Board 360 Degree Trajectory Ball Module Hall Effect Sensor have a tiny circular magnet the end; each of these is paired with an SMD hall effect sensor, which is used to measure up, down, left and right movements of the trackball.
An SMD momentary switch is placed under the trackball to give you a select switch. The BTN line will be pulled low when the switch is pressed. Also included on the Track baller are 4 LEDs: red, blue, green and white. These can be powered to light the clear trackball up any color you can imagine.
All features are broken out to a 0.1 pitch header. Regulated, 2.5-5.25VDC power must be provided to power the Hall sensors. The trackball is attached to strong CA glue. Board comes as shown, with all components populated.
The hall-effect sensors and trackball combo are surprisingly sensitive. A slight roll of the trackball creates multiple high/low transitions on the four axis pins, easily picked up by any microcontroller essentially giving you the option of adding a mouse to your project. A 360 rotation of the trackball, along with a single axis, will result in about 9 high/low transitions.
Micro Bit Motor Drive Breakout Board Shield
Micro Bit Motor Drive Breakout Board Shield
The BBC micro:bitis a powerful handheld, fully programmable, computer designed by the BBC. It was designed to encourage children to get actively involved in technical activities, like coding and electronics. It features a 55 LED Matrix, two integrated push buttons, a compass, Accelerometer, and Bluetooth. It supports the PXT graphical programming interface developed by Microsoft and can be used under Windows, macOS, IOS, Android, and many other operating systems without downloading the additional compiler.
Looking to do more with your BBC micro:bit? Unlock its potential with this motor drive breakout board for the BBC micro: bit! The motor drive breakout board integrates the TB6612FNG chip. Its per channel can output up to 1.2 A continuous drive current, with peak current up to 2A/3.2A. There are 4 motor control modes: Forward/Reverse /Brake /Stop. And PWM supporting frequency is up to 100 kHz.
The BBC micro:bit pins are broken out to 3PIN headers. These provide an easy way of connecting circuits using 3PIN jumper wires. At the same time, a 3.3V and 5V voltage-regulator chip is integrated on the breakout board, breaking out 3.3V and 5V power output interfaces. The board also comes with serial port communication pins.
Micro USB Type B Mike Patch Straight Plug Adapter Plate Welding Head Breakout Board
This is MICRO USB Turn Dip2.54 mm Upright Mother 5p Type B Mike Patch Straight Plug Adapter Plate Welding Head. Welding Head Mike Patch Straight Plug Adapter Plate is an international standard.
It is a female micro-USBadapter mostly used to connect the smartphone data cable as well as chargeror power supply adapters tointerface with your application. It has a wide range of uses.This module is easily transformed into a conventional DIP 2.54mm pin, a great convenience to your application for multipurpose use.
Nano 328P Expansion Adapter Breakout Board IO Shield

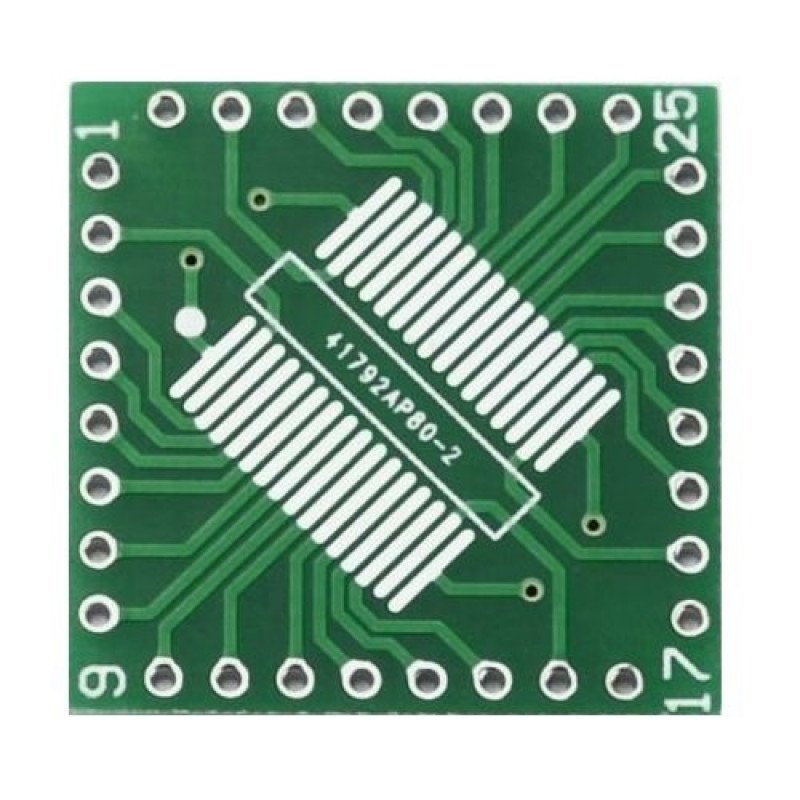

QFP/TQFP/LQFP/FQFP/SOP/SSOP32 to DIP Adapter/ Breakout Board
Si5351A I2C 8 Khz 160 Mhz Clock Generator Breakout Board Module
The Si5351A clock generator is an I2C controller clock generator. It uses the onboard precision clock to drive multiple PLLs and clock dividers using I2C instructions. By setting up the PLL and dividers you can create precise and arbitrary frequencies. There are three independent outputs, and each one can have a different frequency. Outputs are 3Vpp, either through a breadboard-friendly header or, for RF work, an optional SMA connector.
USB 3.1 Female Socket Type C Connector 24 Pins Breakout PCB Board
USB 3.1 Female Socket Type C Connector 24 Pins Breakout PCB Board is a simple but effective breakout board. It has a USB C Female Socket connector mounted on the DUAL side 40 x 25 mm PCB board with all 24 pins broken out to solder point with 12 pins on each side of PCB.
Great for pairing with a microcontroller with USB support.
