ICs & Dips

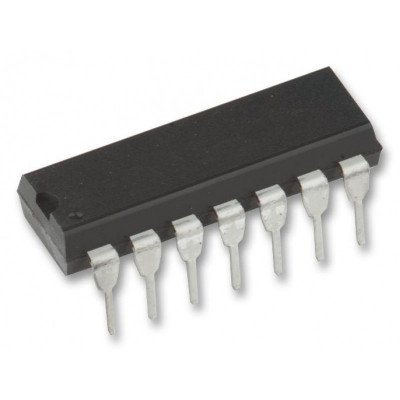

74LS02 Quad 2-Input NOR Gate IC (7402 IC) DIP-14 Package

18.88
The 74LS02 is a 14 Pin Quad 2-Input NOR Gate IC. NOR gates utilize advanced silicon-gate CMOS technology to achieve

74LS03 IC – (SMD Package) Quad 2-input NOR Gate IC (7403 IC)

22.42
These devices contain four independent 2-input-NAND gates. The open-collector outputs require pull-up resistors to perform correctly. They may be connected to other open-collector outputs to implement active-low wired-OR or active-high wired-AND functions. Open-collector devices are often used to generate higher VOH levels.

74LS04 Hex Inverter IC (7404 IC) DIP-14 Package

22.42
74LS04 is Hex Inverter NOT gate IC. It consists of six inverters which perform logical invert action. output of an inverter is complement of its input logic state i.e. when input is high its output is low and vice versa. device contains six independent gates each of which performs logic INVERT function. Operating voltage is 5V, high-level input voltage is 2V, and low-level input is 0.8V. Contains absolute maximum ratings over operating free-air temperature range, recommended operating conditions, electrical characteristics over recommended operating free-air temperature range.

74LS05 Hex Inverters with Open Collector IC (7405) DIP-14 Package

22.42
This device contains six independent gates each of which performs the logic INVERT function. The open-collector outputs require external pull-up resistors for proper logical operation.

74LS05 IC – (SMD Package) Hex Inverters with Open-Collector IC (7405 IC)

30.68
This device contains six independent gates each of which performs the logic INVERT function. The open-collector outputs require external pull-up resistors for proper logical operation.

74LS06 Hex Inverter Buffer IC (7406 IC) DIP-14 Package

25.96
This 74LS06 monolithic hex inverter buffers/drivers feature high-voltage open-collector outputs to interface with high-level circuits (such as MOS), or for driving high-current loads, and are also characterized for use as inverter buffers for driving TTL inputs. The ?LS06 has a rated output voltage of 30 V and the ?LS16 has a rated output voltage of 15 V. The maximum sink current for the 74LS06  is 40 mA. The circuits is compatible with most TTL families. Inputs are diode-clamped to minimize transmission-effects, which simplifies design. Typical power dissipation is 175 mW and average propagation delay time is 8 ns. The 74LS06 is characterized for operation from 0?C to 70?C.

74LS06 IC – (SMD Package) – Hex Inverter -Buffer IC (7406 IC)

34.22
The 74LS06 SMD device contains hex inverted buffers with open-collector. It performs the Boolean function Y=A in positive Logic:-

74LS08 Quadruple 2-Input Positive AND Gate IC (7408) DIP-14 Package

22.42
These devices contain four independent 2-input AND gates. The SN5408,SN54LS08,and SN54S08 are Characterized for operation over the full military Temperture range of -55?C to 125?C.The SN7408,SN74LS08 and SN74S08 are characterized for operation from 0?C to 70?C.

74LS10 IC – (SMD Package) – Triple 3-Input NAND Gates IC (7410 IC)

40.12
The 74LS10 devices contain three independent 3-input NAND gates. The 74LSI0 is characterized for operation from O ?C to 70 ?C.

74LS10 Triple 3-Input NAND Gate IC (7410 IC) DIP-14 Package

16.52
The 74LS10 contains three independent gates each of which performs the logic NAND function.

74LS109 Dual J-K Positive Edge-Triggered Flip-Flop IC (74109 IC) DIP-16 Package

44.84
The 74LS109 devices contain two independent J-K positive-edge-triggered flip-flops. A low level at the preset or clear inputs sets or resets the outputs regardless of the levels of the other inputs. When preset and clear are inactive (high), data at the J and K inputs meeting the setup time requirements are transferred to the outputs on the positive-going edge of the clock pulse. Clock triggering occurs at a voltage level and is not directly related to the rise time of the clock pulse. Following the hold time interval, data at the J and K inputs may be changed without affecting the levels at the outputs. These versatile flip-flops can perform as toggle flip-flops by grounding K and tying J high. They also can perform as D-type flip-flops if J and K are tied together.
