Most importantly, this kit has 20 different Grove modules for a never-ending session of creativity! You can use it altogether with Arduino, Raspberry Pi, or micro:bit. Each module comes in a protective plastic packet. Likewise, all modules are placed in a plastic box (kit). As a result, this kit helps to keep safe all of your modules and cables after prototyping. This plastic box kit is designed to be handy so that you can carry all modules wherever you go!

This Grove module can save you clutter to settle up such an IC by integrating the whole operating circuit. It’s designed for precise differential-input amplification. Input the differential signals of your sensor to this module through the male pins, then your Arduino will get a precisely amplified output from the Grove interface. The gain scale factor is selectable. You can get 35 times or 1085 times amplification via a switch on the board

The Digital Infrared temperature sensor is a non-contact temperature measurement module which bases on MLX90615. Both the IR sensitive thermopile detector chip and the signal conditioning chip are integrated in the same package. This module communicates with Arduino using SMBus, up to 127 sensors can be read via common 2 wires. Thanks to the module’s low noise amplifier, 16-bit ADC and powerful DSP unit, it can achieve high accuracy of 1℃ over a wide temperature range and a high measurement resolution of 0.02℃.

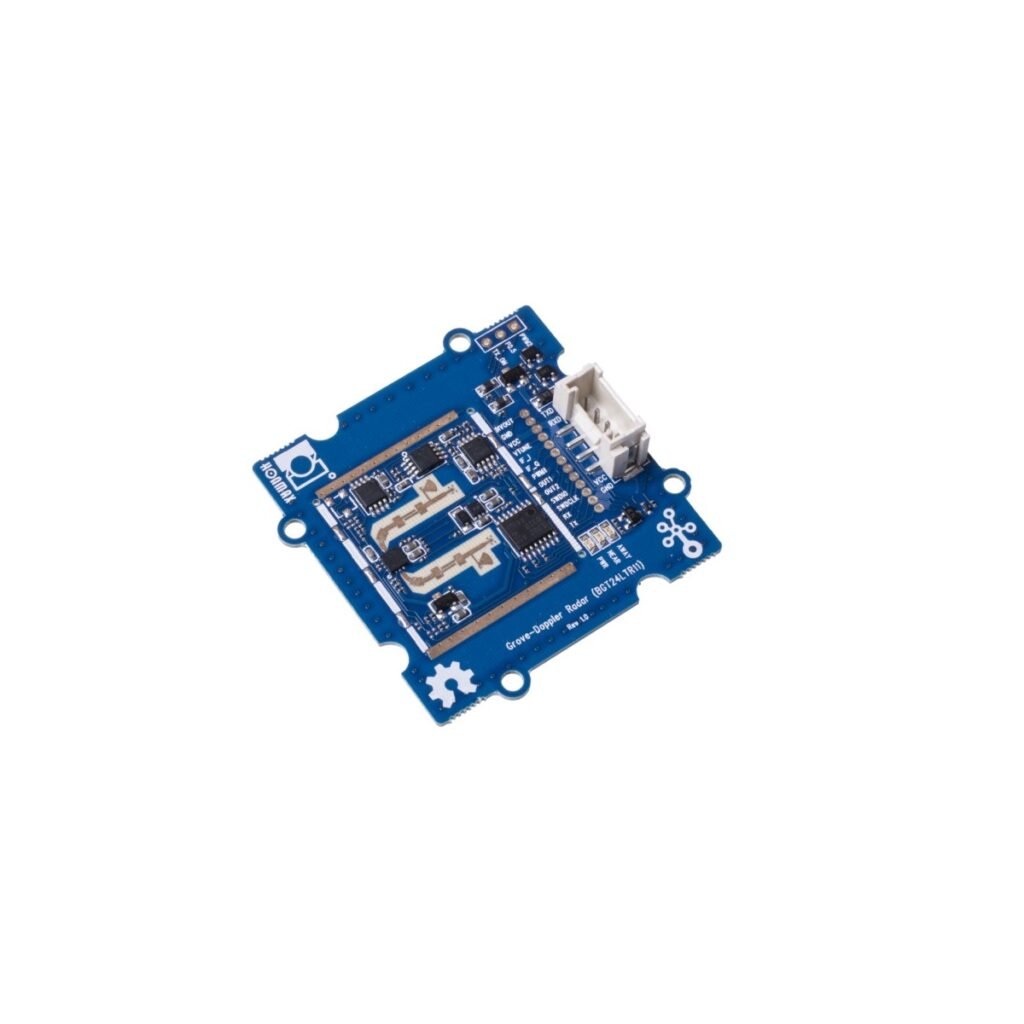

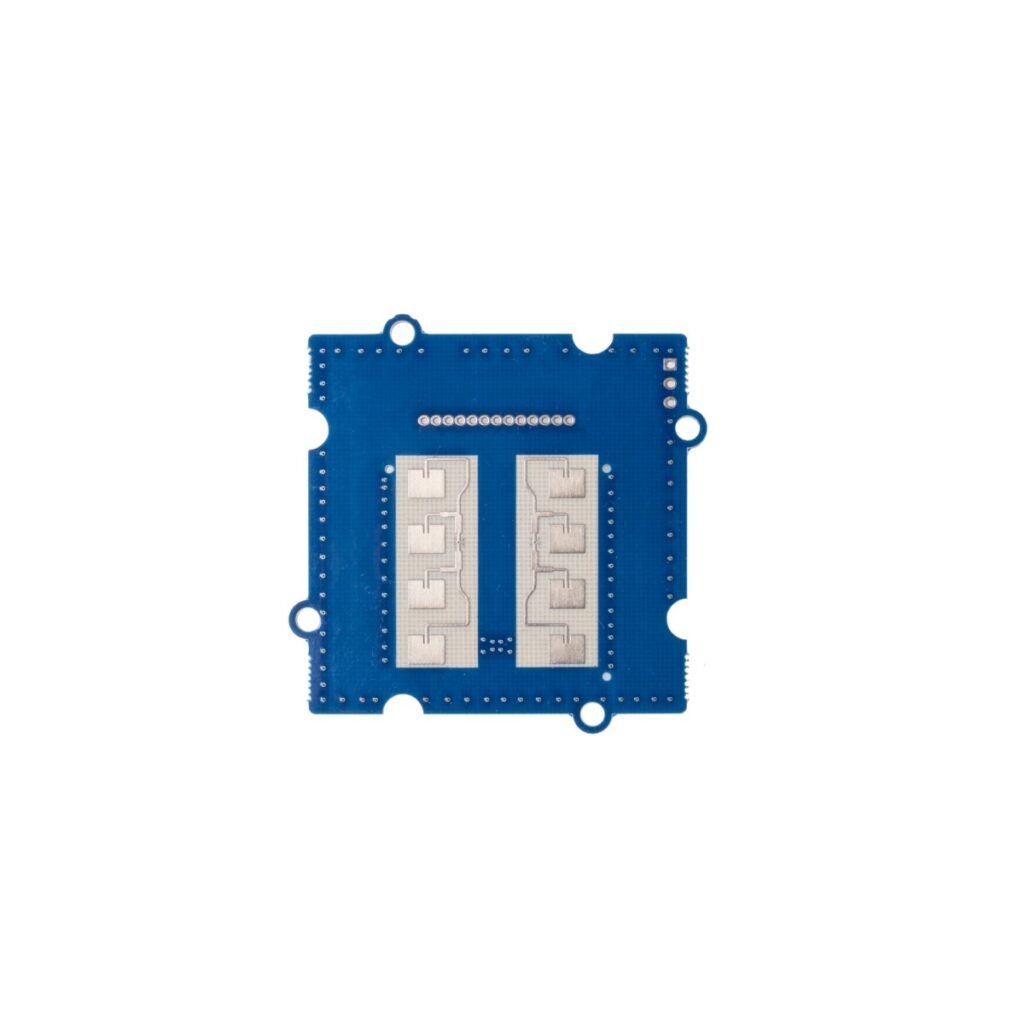

The Grove – Doppler Radar is based on the BGT24LTR11 Silicon Germanium MMIC which is a 24GHz radar transceiver. It is driven by an XMC1302 MCU based on Arm® Cortex®-M0. This comes in a compact package and runs on very low power, providing high-precision measurements. The high frequency of this module allows for high penetration through objects and therefore this module does not need to be exposed outside when deploying, but rather behind an object. This, in turn, is extremely useful in security systems. Also, this is able to operate in harsh weather conditions such as high temperatures, dust, and rain.

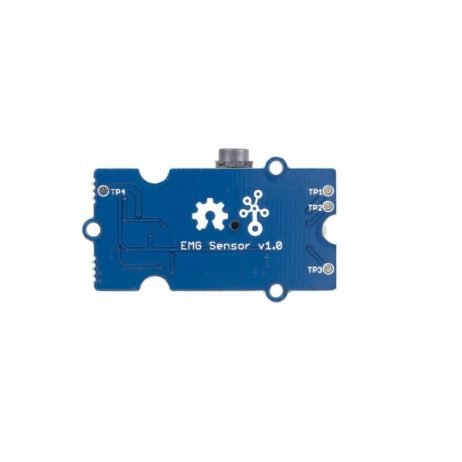

EMG detector is a bridge that connects the human body and electrical, the sensor gathers small muscle signal then process with 2th amplify and filter, the output signal can be recognized by Arduino. You can add this signal to your control system. Note: The sensor cannot be used for medical purposes.

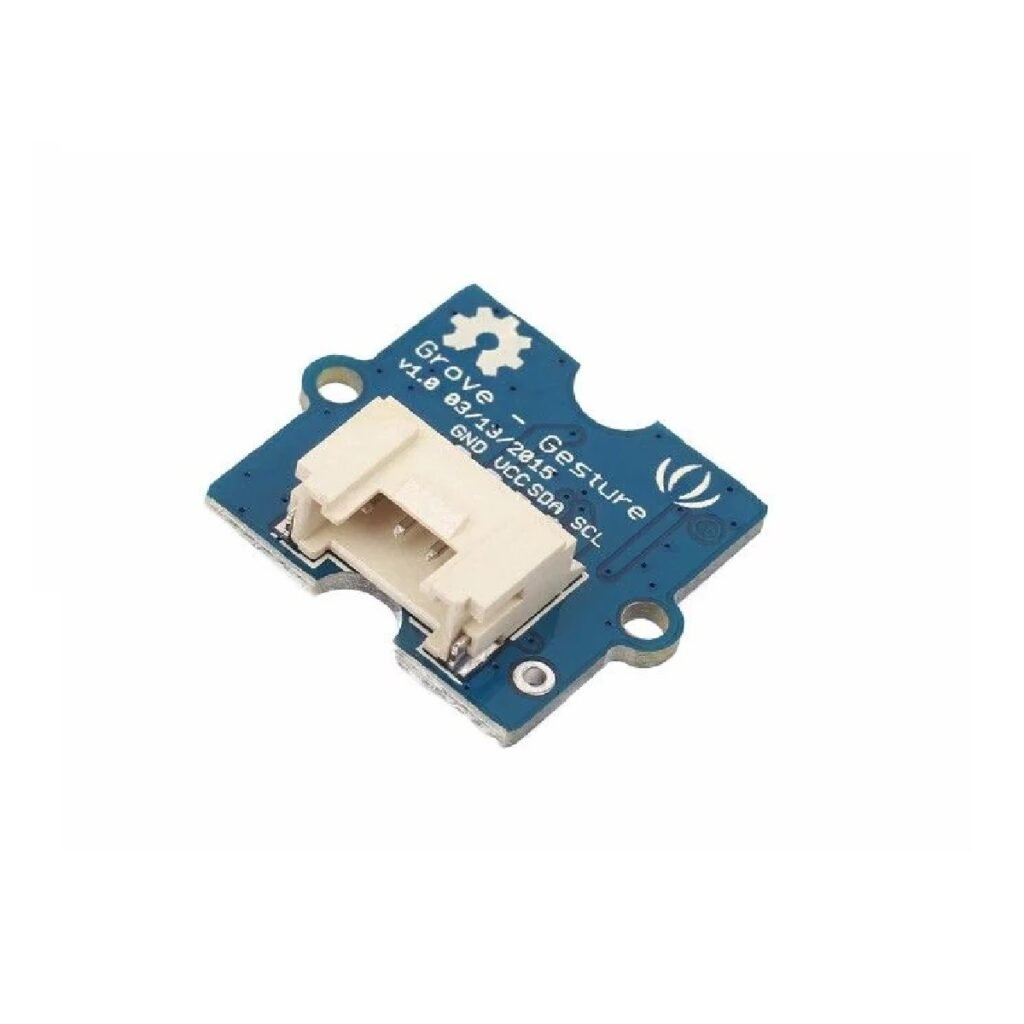

The sensor on Grove – Gesture is PAJ7620U2 that integrates gesture recognition function with general I2C interface into a single chip. It can recognize 9 basic gestures, and these gestures information can be simply accessed via the I2C bus.

It’s a high-performance, highly integrated multi-mode satellite positioning and navigation module. It supports GPS / Beidou / Glonass / Galileo / QZSS / SBAS, which makes it suitable for GNSS positioning applications such as car navigation, smart wear, and drone.

Are you searching for LEDs with adjustable brightness as well as adjustable orientation? Then, Grove LEDs are perfect for your need. The Grove Green LED is designed for monitoring controls from digital ports. It is very helpful for the beginners of Arduino and Seeeduino. The PCB of this module has mounting holes, so you can mount it on the required surface of a box or a desk or a prototype. The Grove Green LED comes with an on-board potentiometer to manage the power requirements of the LED. You can adjust the brightness of the light using this potentiometer; moreover, the Grove LED is similar to the Grove LED module which houses an LED light source. As a result, it can be used as a pilot lamp for power or signal.
