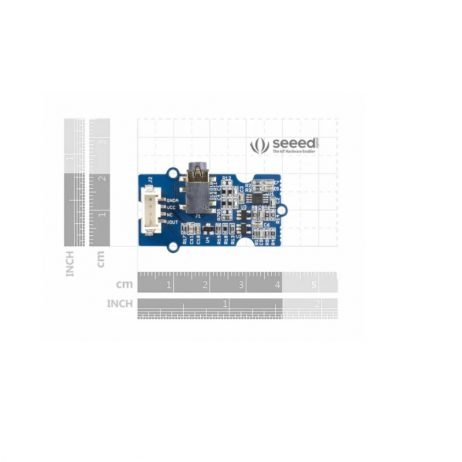

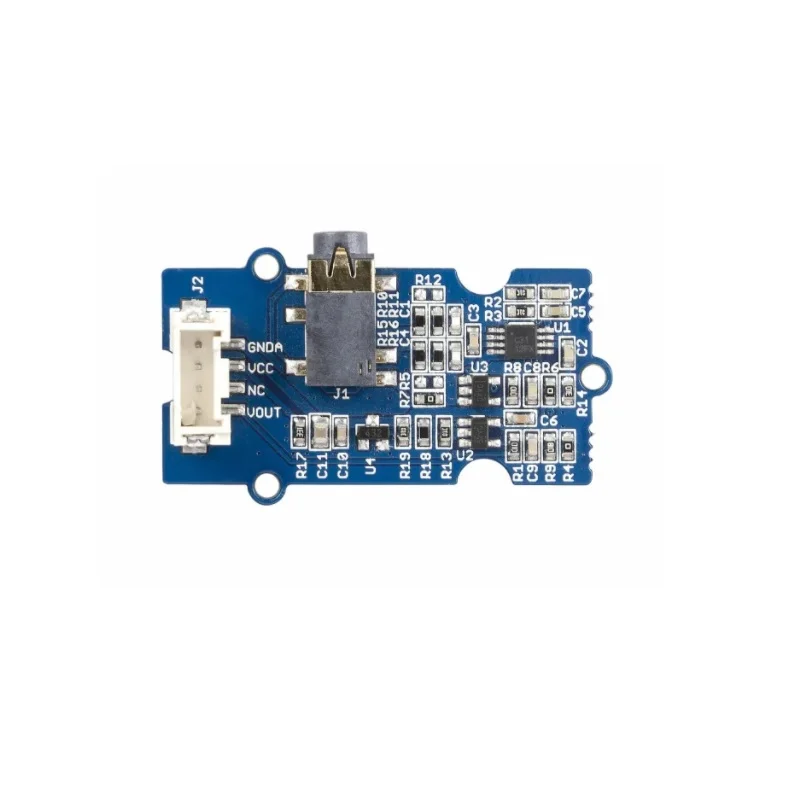

SeeedStudio Grove EMG Detector Module

EMG detector is a bridge that connects the human body and electrical, the sensor gathers small muscle signal then process with 2th amplify and filter, the output signal can be recognized by Arduino. You can add this signal to your control system. Note: The sensor cannot be used for medical purposes.

SKU: RW-01212

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

3,813.00

Inclusive of GST

0 People watching this product now!
  • Pick up from the Robotwala Store

To pick up today

Free

  • Shiprocket from Air

Our courier will deliver to the specified address

3-4 Days

139

  • Shiprocket from Surface

courier will deliver to the specified address

5-7 Days

90

  • Warranty 1 year
  • Free 30-Day returns

Payment Methods:

Description

EMG detector is a bridge that connects the human body and electrical, the sensor gathers small muscle signal then process with 2th amplify and filter, the output signal can be recognized by Arduino. You can add this signal to your control system. Note: The sensor cannot be used for medical purposes.

In standby mode, the output voltage is 1.5V. When detect muscle is active, the output signal rises up, the maximum voltage is 3.3V. You can use this sensor in a 3.3V or 5V system.

Features :

  1. Grove Compatible
  2. 6 Disposable Surface Electrodes
  3. 1000mm Cable Leads
  4. No additional power supply

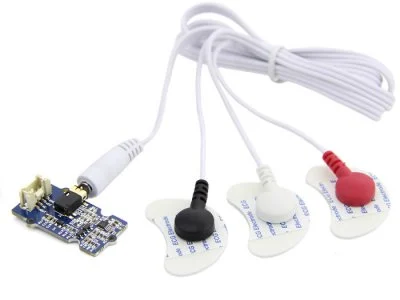

Package Includes :

1 x SeeedStudio Grove EMG Detector
1 x JST cable
1 x 6 Electrodes
1 x ECG Snap with 3.5mm Aux Audio Jack Medical Lead Wire

Additional information

Operating voltage

2.5 3.0V

Pixel Resolution

0.3MP

Photosensitive array

640 x 480

Optical Size

1.6 inch

Angel of view

67 degrees

Maximum Frame Rate

30fps VGA

Sensitivity

1.3V/(Lux-sec)

Dormancy

Less than 20A

Power consumption

60mW/15fpsVGA YUV

Temperature operation Range

-30 C ~ 70 C

Pixel area

3.6 x 3.6 m

Signal to noise ratio (SNR)

46 dB

Dynamic range

52 dB

Specification
