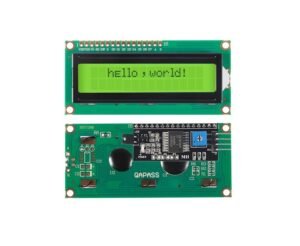

1602 (16×2) LCD Display with I2C/IIC interface – Green Backlight

This is LCD 1602 Parallel LCD Display that provides a simple and cost-effective solution for adding a 16×2 White on Liquid Crystal Display into your project. The display is 16 character by 2 line display has a very clear and high contrast black text upon a green background/backlight.

SKU: RW-00068

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

Original price was: ₹299.00.Current price is: ₹271.00.

Inclusive of GST

50 in stock

50 in stock

0 People watching this product now!
  • Pick up from the Robotwala Store

To pick up today

Free

  • Shiprocket from Air

Our courier will deliver to the specified address

3-4 Days

139

  • Shiprocket from Surface

courier will deliver to the specified address

5-7 Days

90

  • Warranty 1 year
  • Free 30-Day returns

Payment Methods:

Description

This is LCD 1602 Parallel LCD Display that provides a simple and cost-effective solution for adding a 16×2 White on Liquid Crystal Display into your project. The display is 16 character by 2 line display has a very clear and high contrast black text upon a green background/backlight.

This is great green backlight LCD display. It is fantastic for Arduino based project. This LCD1602 LCD Display is very easy to interface with Arduino or Other Micro-controllers.

This display overcomes the drawback of LCD 1602 Parallel LCD Display in which you’ll waste about 8 Pins on your Arduino for the display to get working. Luckily in this product, an I2C adapter is directly soldered right onto the pins of the display. So all you need to connect are the I2C pins, which shows a good library and little of coding.

The I2C is a type of serial bus developed by Philips, which uses two bidirectional lines, called SDA (Serial Data Line) and SCL (Serial Clock Line). Both must be connected via pulled-up resistors. The usage voltages are standard as 5V and 3.3V.

If you already have the I2C adapter soldered onto the board like in this product, the wiring is quite easy. You should usually have only four pins to hook up. VCC and GND of course. The LCD display works with 5 Volts. So we go for the 5V Pin.

The values shown on the display can be either a simple text or numerical values read by the sensors, such as temperature or pressure, or even the number of cycles that the Arduino is performing.

Specifications & Features :-



  • Arduino IIC/I2C interface was developed to reduce the IO port usage on Arduino board
  • I2C adapter allows flexibility in connections
  • I2C Reduces the overall wirings.
  • 16 characters wide, 2 rows
  • Black text on the Green background
  • Single LED backlight included can be dimmed easily with a resistor or PWM.
  • Interface: I2C
  • Interface Address: 0x27
  • Character Color: Black
  • Backlight: Green
  • Supply voltage: 5V



Package Includes:-

1 x 1602 (16×2) LCD Display with I2C/IIC interface – Green Backlight



* Product Images are shown for illustrative purposes only and may differ from actual product.

Additional information

Operating voltage

2.5 3.0V

Pixel Resolution

0.3MP

Photosensitive array

640 x 480

Optical Size

1.6 inch

Angel of view

67 degrees

Maximum Frame Rate

30fps VGA

Sensitivity

1.3V/(Lux-sec)

Dormancy

Less than 20A

Power consumption

60mW/15fpsVGA YUV

Temperature operation Range

-30 C ~ 70 C

Pixel area

3.6 x 3.6 m

Signal to noise ratio (SNR)

46 dB

Dynamic range

52 dB

Specification

Additional information

Interface

I2C

Interface Address

0x27

Character Color

Black

Backlight

Green

Supply voltage

5V
