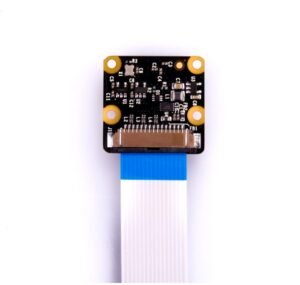

Raspberry Pi 8MP NoIR Camera Module V2 with Cable

The Raspberry Pi NoIR Camera V2 is the “night vision” version of the official camera board released by the Raspberry Pi Foundation. The Raspberry Pi NoIR Camera Board V2 has no Infrared filter, which makes it perfect for taking Infrared photographs or photographing objects in low light (twilight) conditions! Custom designed and manufactured by the Raspberry Pi Foundation in the UK, the Raspberry Pi  NoIR Camera Board V2 features an ultra-high quality 8 megapixel Sony IMX219 image sensor (up from 5MP on the V1 camera board), and a fixed focus camera lens. The V2 camera module is capable of 3280 x 2464 pixel static images, and also supports 1080p30, 720p60 and 640x480p90 video.
SKU: RW-00211

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

Original price was: ₹2,799.00.Current price is: ₹2,298.00.

Inclusive of GST

50 in stock

50 in stock

Compare
0 People watching this product now!
  • Pick up from the Robotwala Store

To pick up today

Free

  • Shiprocket from Air

Our courier will deliver to the specified address

3-4 Days

139

  • Shiprocket from Surface

courier will deliver to the specified address

5-7 Days

90

  • Warranty 1 year

More details

  • Free 30-Day returns

More details

Payment Methods:

Description

The Raspberry Pi NoIR Camera V2 is the “night vision” version of the official camera board released by the Raspberry Pi Foundation. The Raspberry Pi NoIR Camera Board V2 has no Infrared filter, which makes it perfect for taking Infrared photographs or photographing objects in low light (twilight) conditions! Custom designed and manufactured by the Raspberry Pi Foundation in the UK, the Raspberry Pi  NoIR Camera Board V2 features an ultra-high quality 8 megapixel Sony IMX219 image sensor (up from 5MP on the V1 camera board), and a fixed focus camera lens. The V2 camera module is capable of 3280 x 2464 pixel static images, and also supports 1080p30, 720p60 and 640x480p90 video.
The module attaches to Raspberry Pi by way of a 15 Pin Ribbon Cable, to the dedicated 15-pin MIPI Camera Serial Interface (CSI), which was designed especially for interfacing to cameras. The CSI bus is capable of extremely high data rates, and it exclusively carries pixel data to the BCM2835 processor.
The board itself is tiny, at around 25mm x 23mm x 9mm, and weighs just over 3g, making it perfect for mobile or other applications where size and weight are important.
The Raspberry Pi NoIR Camera Board V2 Features:-
  • No IR Filter – Great for Low Light Conditions
  • Includes Blue Filter
  • Fixed focus lens on-board
  • 150mm CSI camera cable included
  • 8 megapixel native resolution sensor-capable of 3280 x 2464 pixel static images
  • Supports 1080p30, 720p60 and 640x480p90 video
  • Size 25mm x 23mm x 9mm
  • Weight just over 3g
  • Connects to the Raspberry Pi board via a short ribbon cable (supplied)
  • NoIR Camera v2 is supported in the latest version of Raspbian, Raspberry Pi’s preferred operating system



* Product Images are shown for illustrative purposes only and may differ from actual product.

Additional information

Operating voltage

2.5 3.0V

Pixel Resolution

0.3MP

Photosensitive array

640 x 480

Optical Size

1.6 inch

Angel of view

67 degrees

Maximum Frame Rate

30fps VGA

Sensitivity

1.3V/(Lux-sec)

Dormancy

Less than 20A

Power consumption

60mW/15fpsVGA YUV

Temperature operation Range

-30 C ~ 70 C

Pixel area

3.6 x 3.6 m

Signal to noise ratio (SNR)

46 dB

Dynamic range

52 dB

Specification
